Model

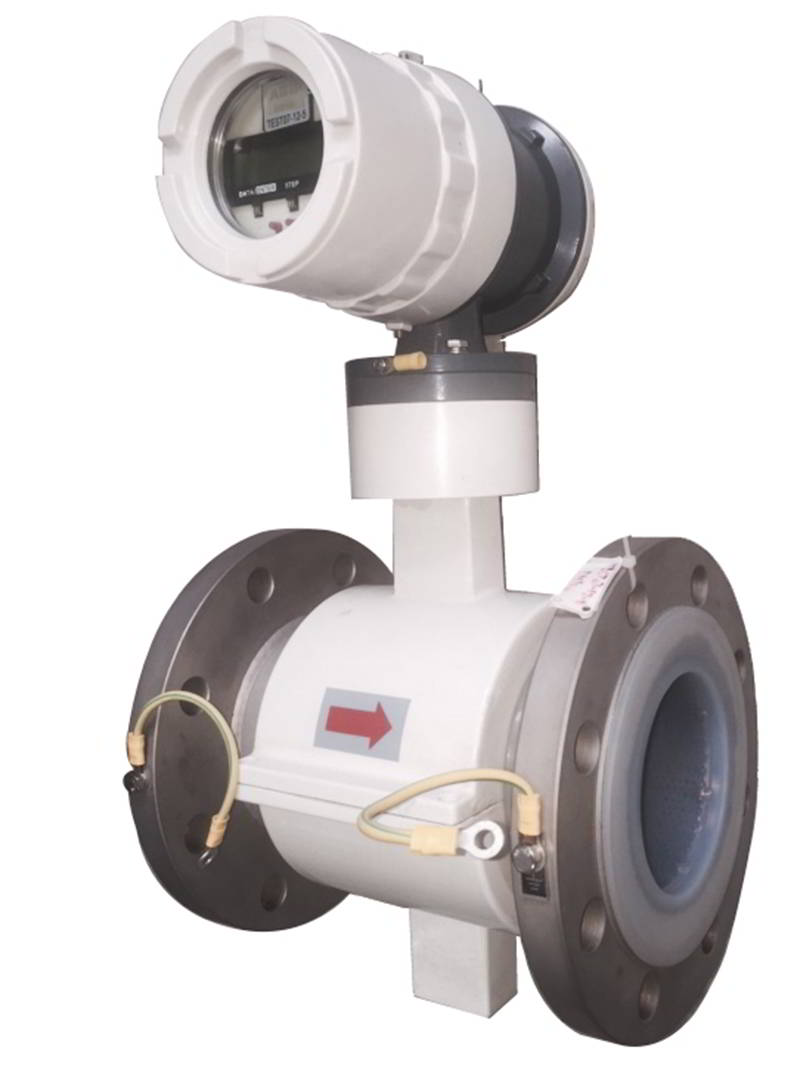

XE Electromagnetic Flowmeter

XEM Electromagnetic Flowmeter

Meter size

DN10 ~ DN1000

DN25 ~ DN3800

Accuracy

0.5% of rate

0.3% of rate

Flow range

0.5 m/s ~ 10 m/s

0.5 m/s ~ 10 m/s（15m/s）

Ex-mark

Ex embdibⅡCT3 ~ CT6

-

Electrode material

Stainless steel 0Cr18Ni12Mo2T, Hastelloy B2/C4, Platinum-Iridium, Tantalum, Titanium, etc.

Liner

Hard rubber, Neoprene rubber, Polyurethane rubber, Silicon-Fluorine rubber (heating only), PTFE, F46, PFA, etc.

Housing

Aluminum housing (DN10 ~ DN300) ,Carbon steel housing (DN350 ~ DN3800) ,Stainless steel housing (option)

Flange

Carbon steel flange sprayed with zinc and paint for antisepsis, Stainless steel flange (option).

Electrode structure

Standard Electrode, Scraper electrode and removable electrode (option)

Protection class

IP67、IP68 (remote type)

Fluid temperature

-25℃ ~ +130℃、+150℃/1h (Steam cleaning)、-40℃ ~ +180℃ (option)

Ambient temperature

-20℃ ~ +60℃

Power Supply

100 ~ 230VAC.、16.8 ~ 26.4VAC.、16.8 ~ 31.2VDC.

Current output

Active and isolated 4~20mA

Pulse output

Passive, active, frequency, pulse width(adjustable)

Communication

HART、DP、PA、FF、RS485 (Modbus、ASCⅡ)

Test and error checking

Self-diagnosis, fault record, output current test, control input (output), simulation mode, empty pipe setting, etc.

Others

Parameter protection, sensor parameters display, range adjustment, zero, small signal cutting, filter, external memory access, number record, etc.
